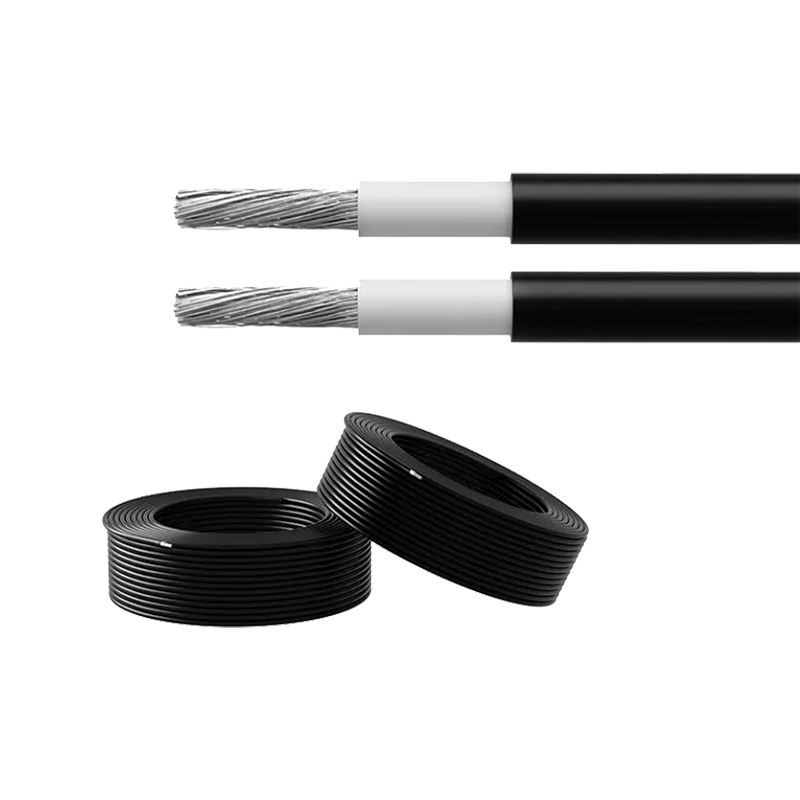

PV1-F type photovoltaic DC special cable

Name: PV1-F type photovoltaic DC special cable
SKU: 0

0.6/1KV PVC/xlpe insulated power cable, conductor is Al, Al Alloy, Cu, PVC insulated power cable is suitable for fixed laying of transmission and distribution lines with AC 50HZ, rated voltage 6KV and below, with stable performance, Advanced technology, rich material resources, low price, good flexibility, easy operation, laying and maintenance

Email : emma@sdbcgroup.com

WhatsApp : +8618865129663

Product Parameters

For use in solar power applications

Rated at 90°C for exposed or concealed wiring in wet or dry locations

The rated capacity is for direct burial catheters.

electrical character ：

-Maximum operating voltage: 600 VRMS (UL PV)

physical characteristics ：

-Temperature range: -40 °C to 90 °C

-Command AWG: 12 2000 AWG

-Conductor material: Soft-annealed tin-plated stranded copper, compliant with ASTM B-33 and EN 60228 standards

-Separator: Paper tape

-Insulation material: Halogen-free cross-linked polyethylene, thermosetting, especially polyolefin, specially designed for maximum flexibility

-Jacket material: UV-resistant PVC black, low-smoke, non-halogenated, flame-retardant, oil-resistant, wear-resistant, chemical-resistant, and UV-crosslinked compound, meeting UL 44 and UL 854 standards

--minutes. Bending radius: 8 times the diameter.

size	conductor diameter	number of piles	insulation thickness	nominal outside diameter	net weight	Maximum conductor resistance at 20 °C
AWG perhaps MCM	MM	N	MM	MM	kg/km	Ω/KM
250	13.21	36	3.04	19.8	504	0.232
500	18.68	36	3.04	25.3	894	0.116
750	23.06	58	3.43	30.4	1312	0.0774
