300/500V XLPE insulated, LSZH sheathed power cable (single core)

Name: 300/500V XLPE insulated, LSZH sheathed power cable (single core)
SKU: 0

Single-core 300/500V XLPE insulated, LSZH sheathed power cables are mainly used in power plants, public transportation passenger systems, airports, petrochemical plants, hotels, hospitals, high-rise buildings, and other wiring applications.

Email : emma@sdbcgroup.com

WhatsApp : +8618865129663

Product Parameters

Standard

Standard conforms to IEC 60502-1

Fire protection standards

Flammability (Single Vertical Wire Test)	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2);CEI 20-35/1-2; EN 50265-2-1; DIN VDE 0482-265-2-1
Reduce fire spread (vertical installation of cable bundles test)	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24;VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen-free	IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1;CEI 20-37/2-1; BS 6425-1*
No emission of corrosive gases	IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2;CEI 20-37/2-2; BS 6425-2*
Minimum smoke emission	IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2;CEI 20-37/3-1&2; EN 50268-1&2; BS 7622-1&2
Toxic and harmful gases	NES 02-713; NF C 20-454

Note: * indicates that the standard has been superseded.
Rated voltage

300/500V

Cable structure

Conductor	Plain Annealed Copper, Multi-strand Stranded Compliant with IEC (EN) 60228 Class 2
Insulation	Cross-linked polyethylene composite
Outer Sheath	Thermoplastic LSZH compound, BS 7655-6.1 standard (LTS3 model; thermosetting LSZH compound, BS 7655-2.6 standard SW2-SW4 is also available). UV resistance, hydrocarbon resistance, oil resistance, rodent resistance, and termite resistance can all be provided as options.

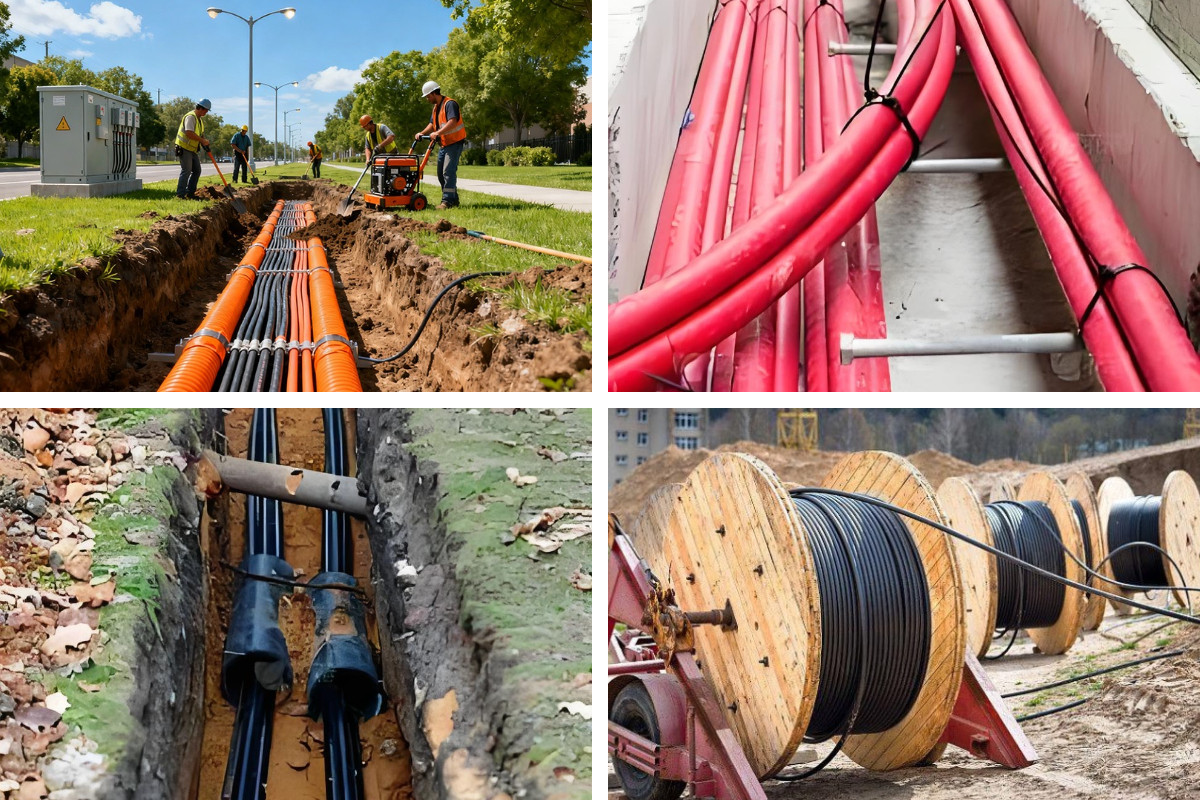

Product Application

FAQ

Q：

Which countries and regions does your company's service cover?

A：

Our services cover key global regions, including Asia (China, Thailand, Malaysia, etc.), Europe (Germany, France, Italy, etc.), North America (United States, Canada), as well as South Africa, Australia, Brazil, and other regions. We can provide targeted service support according to customer needs.

Q：

How long does it take for a customized service to provide an initial solution?

A：

Upon receiving a client's customized request, our professional team will communicate with them within 24 hours to clarify specific requirements (such as technical parameters, scenario adaptation, etc.). A preliminary customized solution can usually be provided within 3-5 business days. For complex requirements, we can negotiate to extend the timeframe and keep the progress in sync.

Q：

What is the after-sales response time for overseas projects?

A：

The timeframe varies depending on the region: 24 hours for countries in neighboring Asia, 48 hours for Europe and North America, and 72 hours for other regions such as South Africa and Australia. Special and urgent projects can be expedited upon negotiation.

Q：

What is the product warranty period, and what does the warranty cover?

A：

The warranty period for standard products is 1 year, and for core components it can be extended to 2 years (subject to the contract agreement). The warranty covers product quality issues, repairs and replacement of spare parts for malfunctions under normal use, but does not cover damage caused by human error or force majeure.
