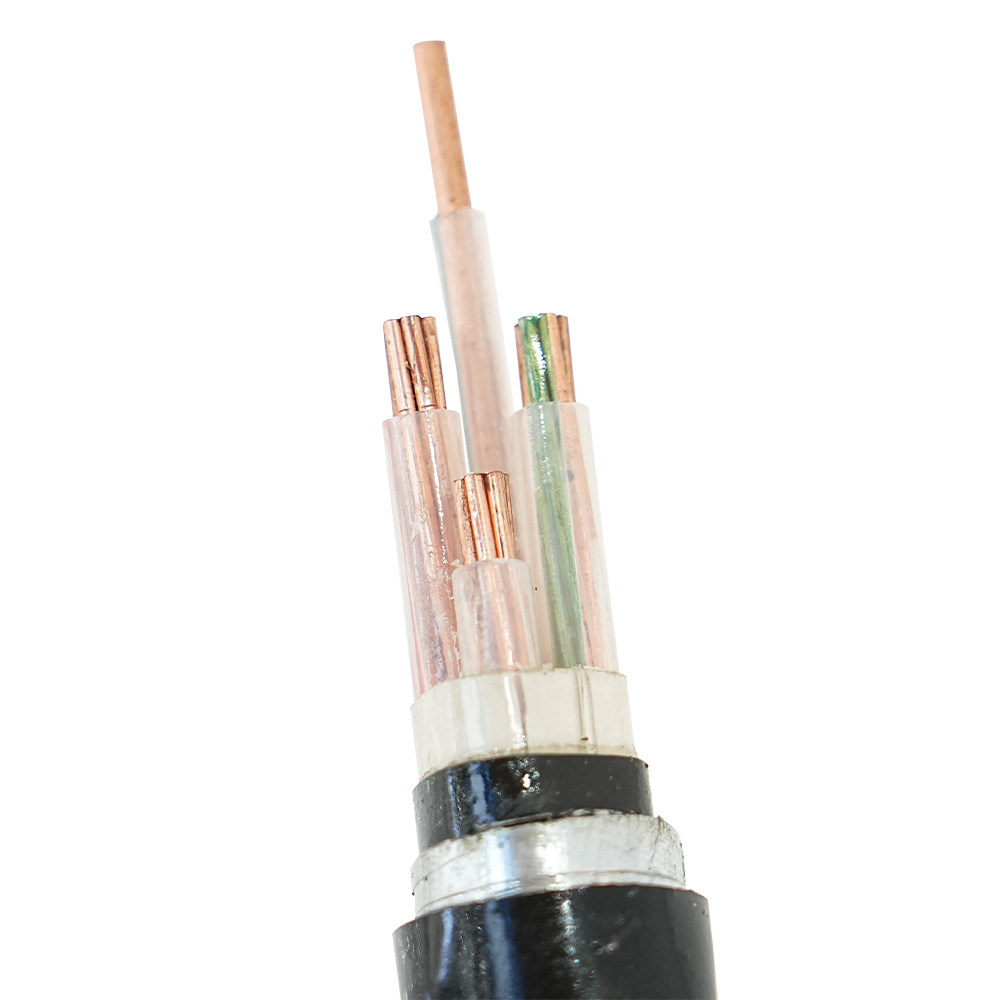

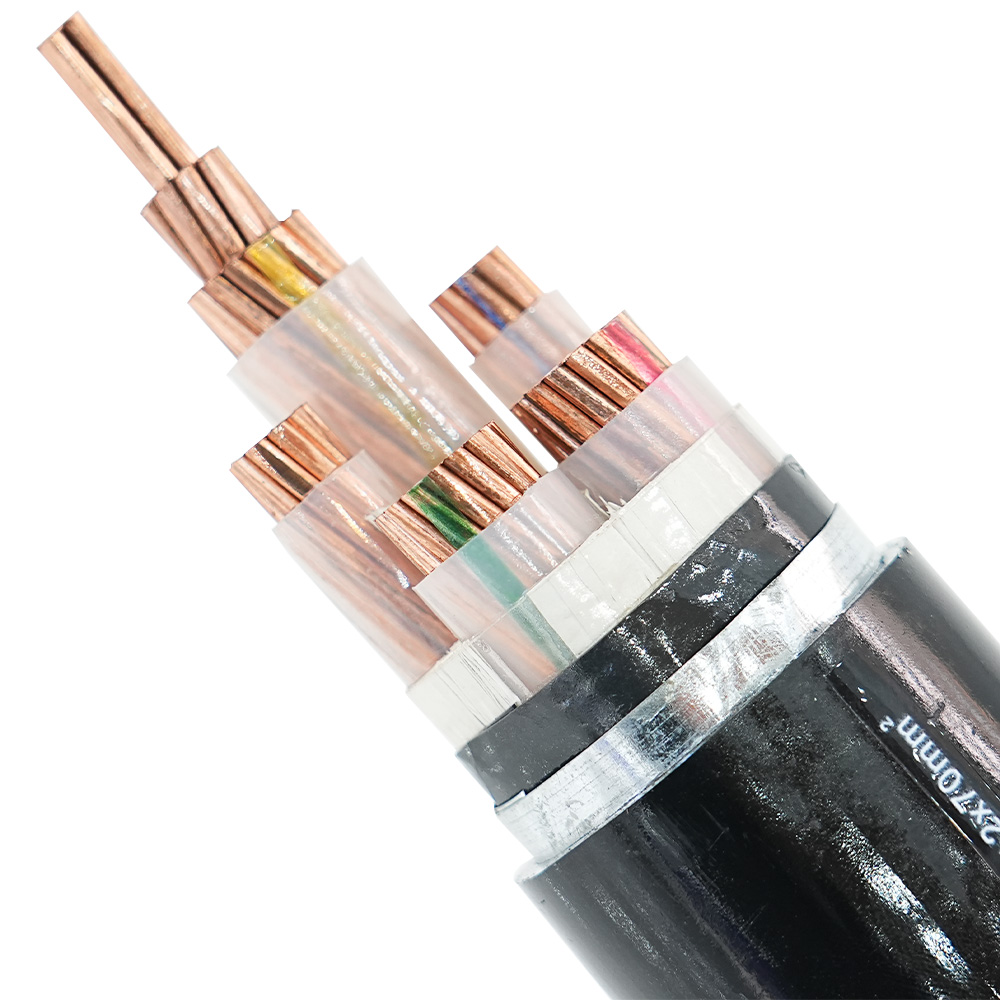

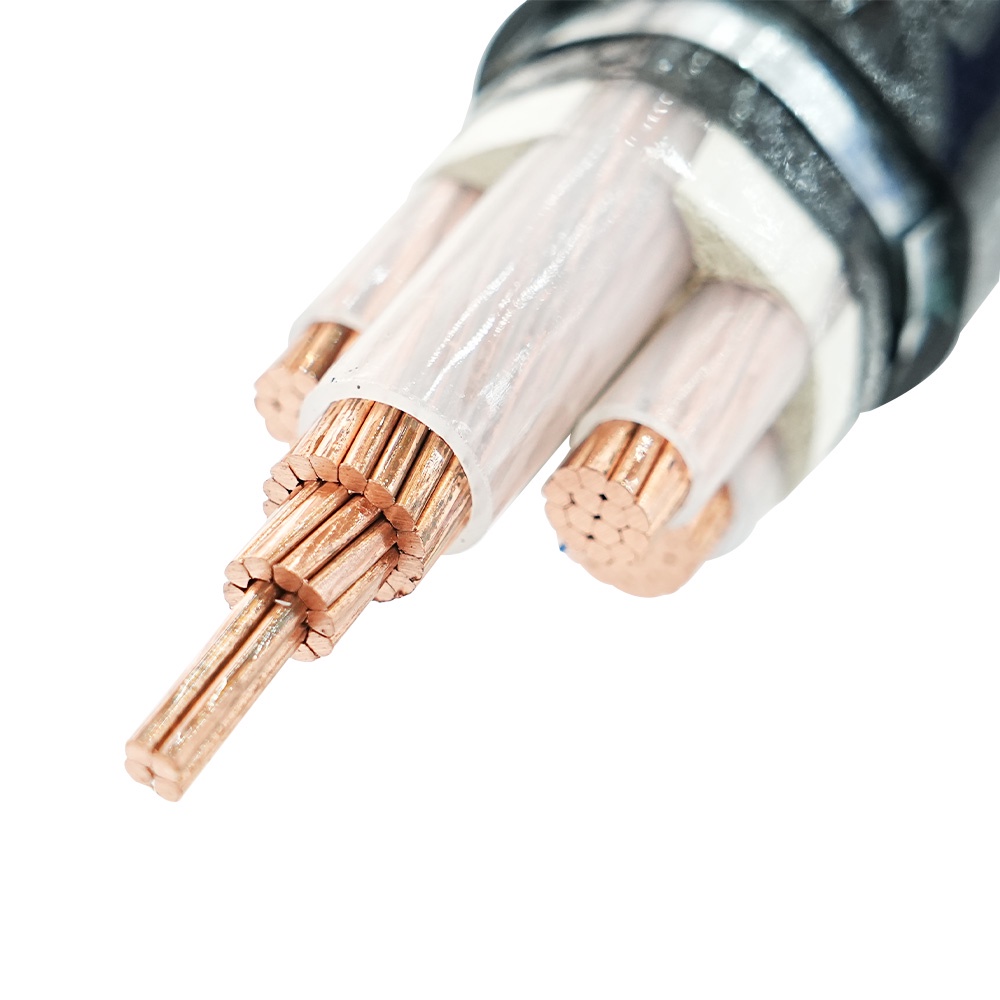

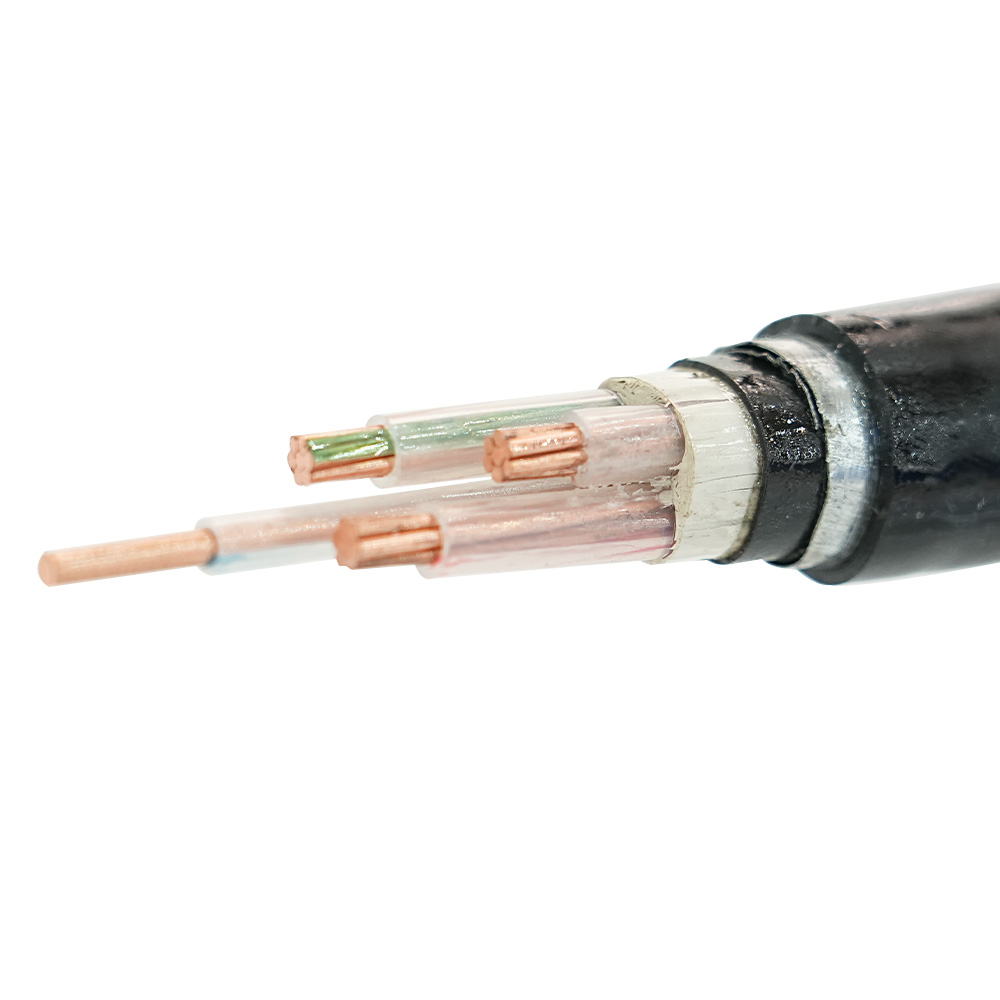

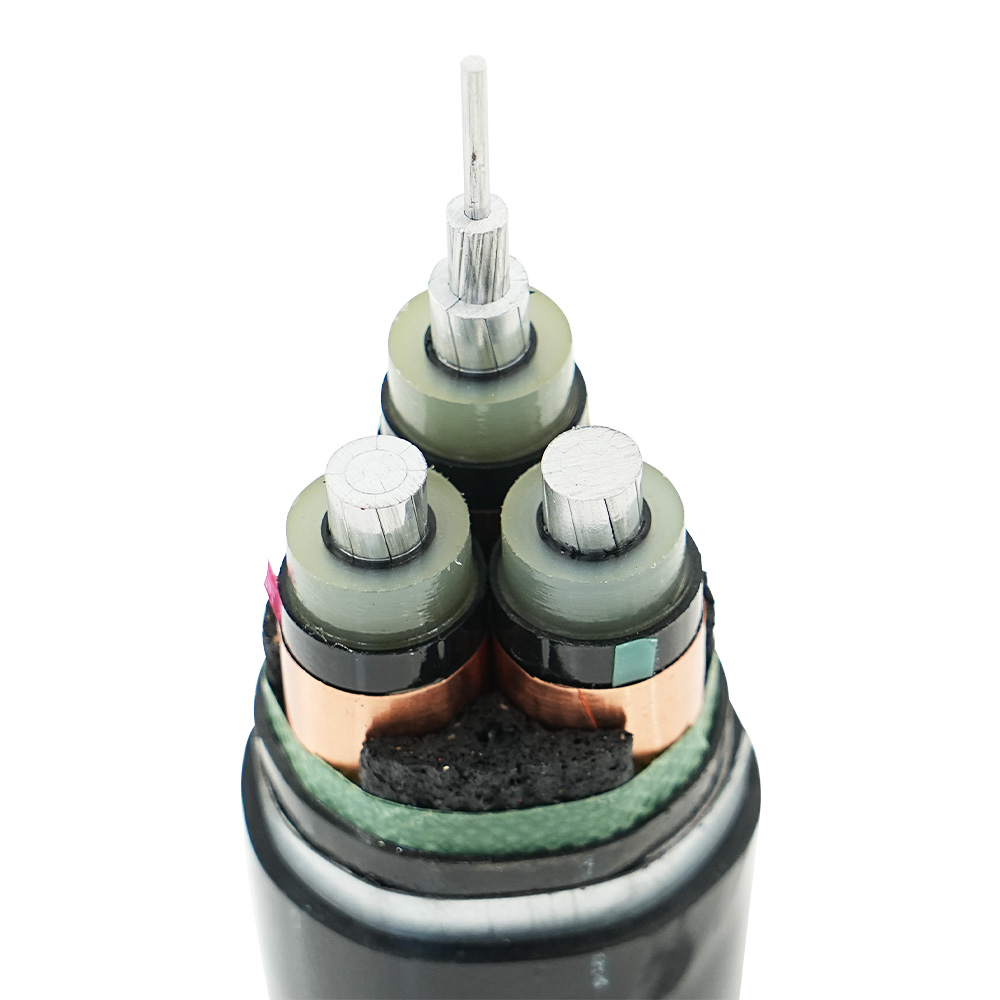

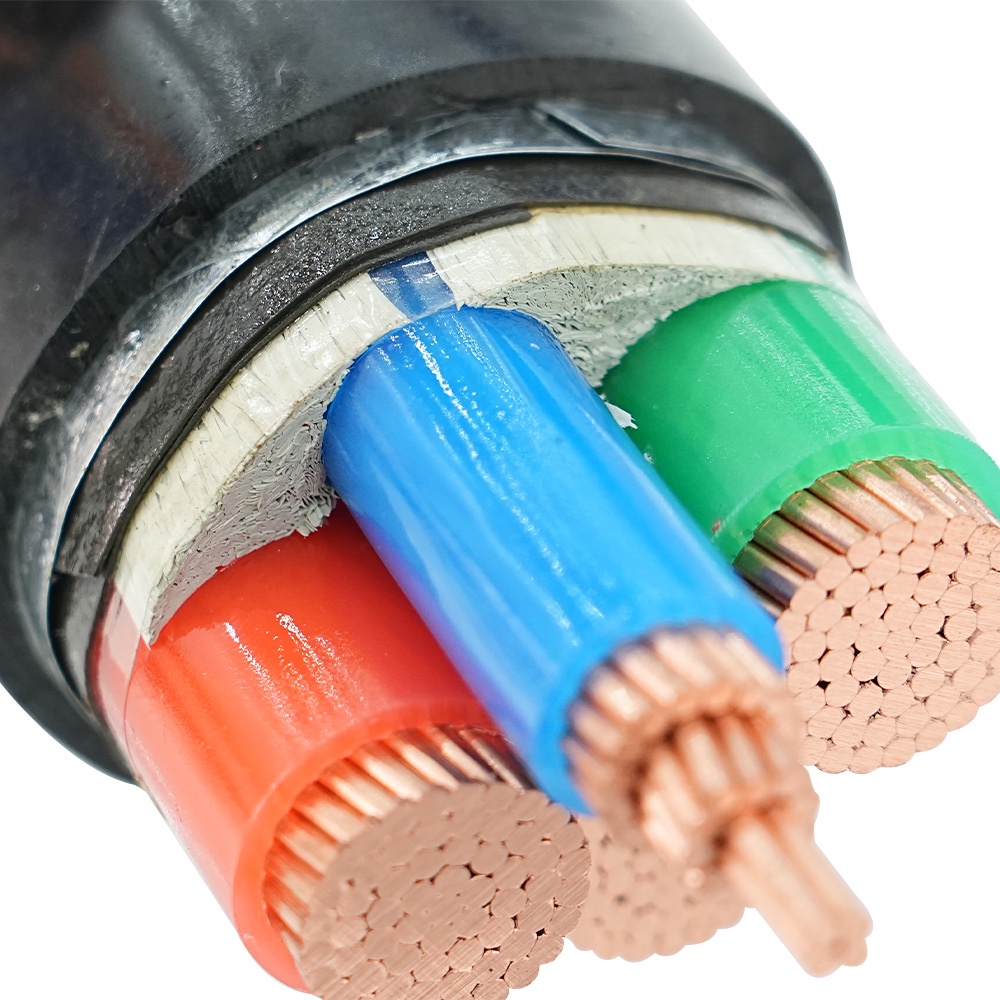

YJV power cable

Name: YJV power cable
SKU: 0

In modern power transmission and distribution systems, YJV power cables, with their superior performance, are widely used in various fields, ensuring a stable and reliable power supply. YJV cables feature a rational structural design and high mechanical strength. During laying and use, they can withstand certain tensile and compressive forces, and are less prone to breakage or deformation.
In modern power transmission and distribution systems, YJV power cables, with their superior performance, are widely used in various fields, ensuring a stable and reliable power supply.

Email : emma@sdbcgroup.com

WhatsApp : +8618865129663

Product Parameters

PVC insulated and PVC sheathed non-armored power cable

PVC insulated and PVC sheathed armored power cable

XLPE insulated PVC/LSOH sheathed power cable

LSOH insulated cable

Flame-retardant and fireproof power cables

Medium-voltage power cables

Power cable with PVC insulation and PVC sheath
rated voltage	300/500V , 600/1000V or 1900/3300V

conductor material	multi strand annealed copper
insulation material	Flame-retardant polyvinyl chloride compounds
infilling	Polyvinyl chloride or polypropylene
wrapping tape	polyester (mila) tape
outer sheath material	Flame-retardant polyvinyl chloride mixture

Conductor color
Insulation color	1 core	Red, yellow, blue, black, yellow/green, or other colors specified by the customer
	2 cores	Red and Black
	3-core	Red, yellow, and blue
	4 cores	Red, yellow, blue, and black
Sheath color	Black, gray, white

testing standard
size of product	material standards	flame retardant delay test
BS 6360	BS 7655	BS 4066 PART 1
BS 6004	IEC 60811	IEC 60332-1
IEC 60227-3	.	.
IEC 60228	.	.
IEC 60502-1	.	.

Model	Number of cores	Rated voltage UO/UKV
		3.6/66/6	6/108.7/10	12/2018/20	21/3526/35
		Conductor Nominal Cross-sectional Area (mm²)
YJLV YJV YJLY YJY	1	25-500	25-500	35-500	50-300
YJLV32YJV32YJLY32JYY32	1	25-500	25-500	35-500	50-300
YJLV42YJV42YJLV43YJV43	1	25-500	25-500	35-500	50-300
YJLVYJVYJLYYJY	3	25-300	25-300	35-300
YJLV22YJV22YJLV23YJV23	3	25-300	25-300	35-300
YJLV32YJV32YJLV33YJV33	3	25-300	25-300	35-300
YJLV42YJV42YJLV43YJV43	3	25-300	25-300	35-150

Product Application

FAQ

Q：

Which countries and regions does your company's service cover?

A：

Our services cover key global regions, including Asia (China, Thailand, Malaysia, etc.), Europe (Germany, France, Italy, etc.), North America (United States, Canada), as well as South Africa, Australia, Brazil, and other regions. We can provide targeted service support according to customer needs.

Q：

How long does it take for a customized service to provide an initial solution?

A：

Upon receiving a client's customized request, our professional team will communicate with them within 24 hours to clarify specific requirements (such as technical parameters, scenario adaptation, etc.). A preliminary customized solution can usually be provided within 3-5 business days. For complex requirements, we can negotiate to extend the timeframe and keep the progress in sync.

Q：

What is the after-sales response time for overseas projects?

A：

The timeframe varies depending on the region: 24 hours for countries in neighboring Asia, 48 hours for Europe and North America, and 72 hours for other regions such as South Africa and Australia. Special and urgent projects can be expedited upon negotiation.

Q：

What is the product warranty period, and what does the warranty cover?

A：

The warranty period for standard products is 1 year, and for core components it can be extended to 2 years (subject to the contract agreement). The warranty covers product quality issues, repairs and replacement of spare parts for malfunctions under normal use, but does not cover damage caused by human error or force majeure.
