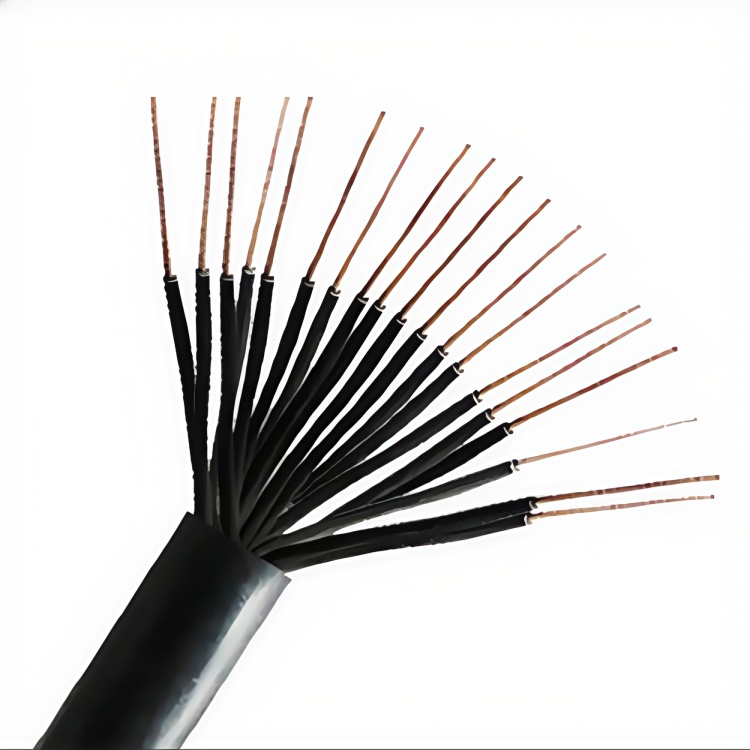

Control cable

Name: Control cable
SKU: 0

Control cables are specialized cables used to transmit control and monitoring signals, as well as for automated control systems of electrical equipment. They are suitable for signal transmission and control connections in industries such as industrial and mining enterprises, energy systems, and automation equipment.

Email : emma@sdbcgroup.com

WhatsApp : +8618865129663

Product Parameters

VDE standard control cable

· YY

· SY

· CY

· LIYCY

· LIYCY (TP) series control cable

· PVC insulated flat cable

· PUR-JZ control cable

· PUR-CY control cable

British standard control cable

· H03VV-F

· H05VV-F

· 6181B

· 6181XY

IEC 60502 standard cable

· CVV

· CVV-S

· CVV-SWA

Italian standard control cable

· A03VVF

· A05VVF

· FROR

· N07V-K

RVVP shielded flexible cable
Model	Product Name	Installation scenarios and requirements	Conductor long-term allowable operating temperature / ℃	Rated Voltage V	Nominal cross-sectional area mm²
RVVP	Copper core polyvinyl chloride insulated shielded polyvinyl chloride sheathed flexible wire	Mobile use and installation require flexible cables with sheathed wires for moisture protection and occasions requiring a certain level of mechanical protection.	70	300/300	0.08 ~ 6
RVVP1	Copper Core Polyvinyl Chloride Insulated Twisted Shielded Polyvinyl Chloride Sheathed Flexible Wire		70	300/300	0.08 ~ 6
Cable Structure/Size Table
Model	Conductor structure		Maximum outer diameter of cable mm	Reference Weight KG/KM	20 ℃ DC resistance ≤ Ω/km
Model	Nominal cross-sectional area mm²	Number of shares / Wire diameter mm	Maximum outer diameter of cable mm	Reference Weight KG/KM	Tin-plated	Tinning
RVVP300/300V	1X0.3	1X16/0.15	3.5	14.46	69.2	71.2
	1X0.4	1X23/0.15	3.7	16.44	48.2	49.6
	1X0.5	1X16/0.20	3.8	17.99	39	40.1
	1X0.75	1X24/0.20	4.1	21.5	26	26.7
	1X1.0	1X32/0.20	4.9	30.25	19.5	20
	1X1.5	1X30/0.25	5.2	36.64	13.3	13.7
	1X2.5	1X49/0.25	6	55.22	7.98	8.21
	1X4	1X56/0.30	7.1	83.6	4.95	5.09
	1X6	1X84/0.30	8.2	107.54	3.3	3.39
	2X0.3	2X16/0.15	6.2	40.16	69.2	71.2
	2X0.4	2X23/0.15	6.6	45.19	48.2	49.6
	2X0.5	2X16/0.20	6.8	49.5	39	40.1
	2X0.75	2X24/0.20	7.4	57.63	26	26.7
	2X1.0	2X32/0.20	8.2	71.22	19.5	20
	2X1.5	2X30/0.25	9.2	92.9	13.3	13.7
	2X2.5	2X49/0.25	10.9	143.53	7.98	8.21
	2X4	2X56/0.30	11.5	188.1	4.95	5.09
	3X0.3	3X16/0.15	6.5	46.65	69.2	71.2
	3X0.4	3X23/0.15	6.9	53.15	48.2	49.6
	3X0.5	3X16/0.20	7.1	58.2	39	40.1
RVVP300/300V	3X0.75	3X24/0.20	7.8	69.62	26	26.7
	3X1.0	3X32/0.20	9.1	93.67	19.5	20
	3X1.5	3X30/0.25	10	122.92	13.3	13.7
	3X2.5	3X49/0.25	11.9	189.37	7.98	8.21
	4X0.3	4X16/0.15	7	54.71	69.2	71.2
	4X0.4	4X23/0.15	7.5	62.86	48.2	49.6
	4X0.5	4X16/0.20	8.2	74.75	39	40.1
	4X0.75	4X24/0.20	8.7	89.69	26	26.7
	4X1.0	4X32/0.20	9.7	113.06	19.5	20
	4X1.5	4X30/0.25	11.1	157.24	13.3	13.7
	4X2.5	4X49/0.25	12.8	231.1	7.98	8.21
	5X0.3	5X16/0.15	7.6	63.28	69.2	71.2
	5X0.4	5X23/0.15	8.1	73.13	48.2	49.6
	5X0.5	5X16/0.20	8.7	86.71	39	40.1
	5X0.75	5X24/0.20	9.4	104.44	26	26.7
	5X1.0	5X32/0.20	11.1	150.57	19.5	20
	5X1.5	5X30/0.25	11.9	183.97	13.3	13.7
	5X2.5	5X49/0.25	13.8	272.8	7.98	8.21
	6X0.3	6X16/0.15	8.2	71.8	69.2	71.2
	6X0.4	6X23/0.15	9.2	90.1	48.2	49.6
	6X0.5	6X16/0.20	9.3	99.4	39	40.1
	6X0.75	6X24/0.20	10	120.59	26	26.7
	6X1.0	6X32/0.20	11.8	171.85	19.5	20
	6X1.5	6X30/0.25	12.7	211.08	13.3	13.7
	6X2.5	6X49/0.25	14.8	315	7.98	8.21
	7X0.3	7X16/0.15	8.2	75.06	69.2	71.2
	7X0.4	7X23/0.15	9.2	94.45	48.2	49.6
	7X0.5	7X16/0.20	9.3	104.62	39	40.1
	7X0.75	7X24/0.20	10	127.97	26	26.7
	7X1.0	7X32/0.20	11.8	181.8	19.5	20
	7X1.5	7X30/0.25	12.7	225.1	13.3	13.7
	7X2.5	7X49/0.25	14.8	338.1	7.98	8.21
	8X0.3	8X16/0.15	8.7	85.02	69.2	71.2
	8X0.4	8X23/0.15	9.6	106.81	48.2	49.6
	8X0.5	8X16/0.20	10.1	118.53	39	40.1
	8X0.75	8X24/0.20	10.8	145.43	26	26.7
	8X1.0	8X32/0.20	13.2	216.27	19.5	20
	8X1.5	8X30/0.25	14.2	266.95	13.3	13.7
	8X2.5	8X49/0.25	16.4	400.23	7.98	8.21
	10X0.3	10X16/0.15	10.9	120.78	69.2	71.2
	10X0.4	10X23/0.15	11.6	139.95	48.2	49.6
	10X0.5	10X16/0.20	12.4	164.19	39	40.1
	10X0.75	10X24/0.20	13.2	199.21	26	26.7
	10X1.0	10X32/0.20	15.1	262.76	19.5	20
	12X0.3	12X16/0.15	11.2	133.3	69.2	71.2
	12X0.4	12X23/0.15	11.9	156.51	48.2	49.6
	12X0.5	12X16/0.20	12.7	183.47	39	40.1
	12X0.75	12X24/0.20	13.5	224.3	26	26.7
	12X1.0	12X32/0.20	15.5	296.37	19.5	20
	14X0.3	14X16/0.15	11.7	148.4	69.2	71.2
	14X0.4	14X23/0.15	12.5	173.79	48.2	49.6
	14X0.5	14X16/0.20	13.3	203.67	39	40.1
	14X0.75	14X24/0.20	14.2	250.38	26	26.7
	14X1.0	14X32/0.20	16.2	331.31	19.5	20
	16X0.3	16X16/0.15	12.3	162.94	69.2	71.2
	16X0.4	16X23/0.15	13.1	191.47	48.2	49.6
	16X0.5	16X16/0.20	14	224.35	39	40.1
	16X0.75	16X24/0.20	14.9	276.99	26	26.7
	16X1.0	16X32/0.20	17.1	366.94	19.5	20
	19X0.3	19X16/0.15	12.9	181.16	69.2	71.2
	19X0.4	19X23/0.15	14.2	224.46	48.2	49.6
	19X0.5	19X16/0.20	15.1	262.07	39	40.1
	19X0.75	19X24/0.20	16.1	232.75	26	26.7
	19X1.0	19X32/0.20	17.9	413.35	19.5	20
24X0.3	24X16/0.15	14.4	232	69.2	71.2
24X0.4	24X23/0.15	16.4	273.8	48.2	49.6
24X0.5	24X16/0.20	17.4	319.65	39	40.1
24X0.75	24X24/0.20	18.6	396.78	26	26.7
24X1.0	24X32/0.20	21	508.49	19.5	20
Note: The above specifications are for the common type, and special specifications can be customized according to user requirements.
